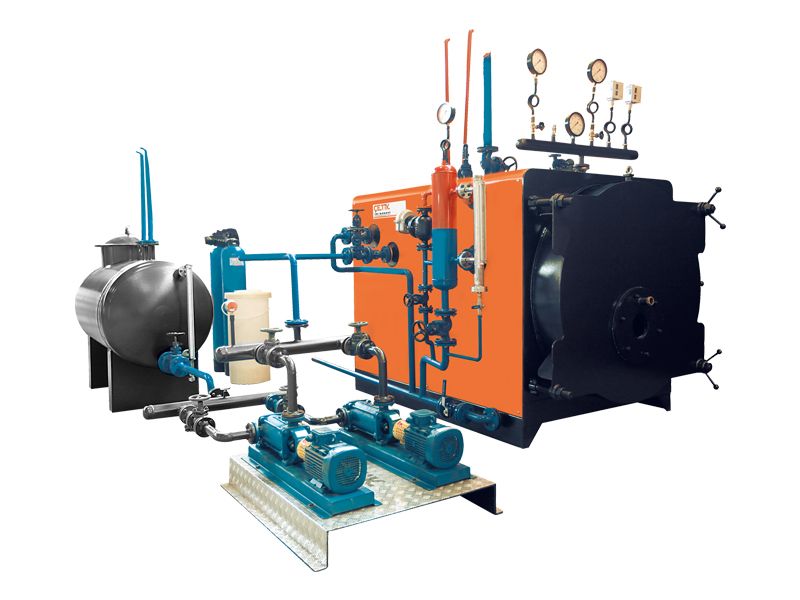

2 Pass Ways, Reverse Flame, Cylindric - Liquid & Gas Fuel Fired - Steam Boiler
EKO BK
| Saturated Dry Steam; Immediately 2 Pass Steam Boiler |
| Computer Aided Design in compliance with latest CE |
| pressure equipment directives and EN Harmonized Standards. |
| Production with plasma cuting machines,submerged |
| ARC welding and closed electrode welding methods. |
| Easy operation and maintenance. |
| Small size,high performance,low fuel consumption. |
| Steam safe and combined solution. |
| Safe operation.Main components of |
| steam system package; |
| Burner flame is reversed in the same chamber due |
| to counter pressurized combustion. |
| Liquid or gas fired burner application. |
| Feed water pump module with stand by pump and armatures. |
| Boiler armatures including all operation and safety |
| equipment . |
| Electrode - controlled water level safety system (Optional). |
| Chimney (Optional). |
| Automatic timed bluff (Optional). |
